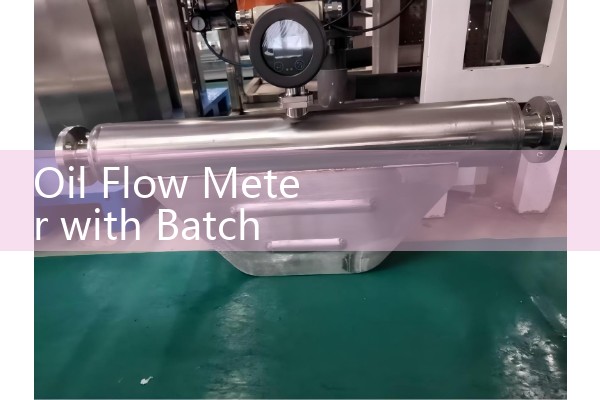

Oil Flow Meter with Batch Controller: Automating Precise Valves for Fill Stations
Quick Answer: An oil flow meter with a batch controller turns a fill station into a precision dosing system. The batch controller receives pulses from the flow meter and closes a solenoid or ball valve the moment the preset batch volume is reached. This method works for engine oil, edible oil, diesel, and heavy fuel oil with repeatability often below 0.3 percent. Silver Automation Instruments supplies pre-wired panels that combine an oval gear or Coriolis mass flow meter with a digital batch controller and a fast-acting valve for plug-and-play installation.
So why are small and mid-size filling plants moving away from timer-based filling? Because oil density changes with temperature and product grade. A timer cannot compensate for a shift from 0.83 kg/L to 0.85 kg/L diesel. A pulse-output flow meter reads actual volume passing through the pipe. The batch controller discards the clock and counts pulses. This fundamental difference cuts giveaway and prevents short fills that lead to customer complaints or regulatory fines.
Oval Gear vs Coriolis for Oil Batch Filling
Engineers often ask which meter type fits their oil. For clean oils with viscosity above 5 cP, the oval gear positive displacement flow meter delivers the best price-to-performance ratio. It has no straight-run requirements and measures volume directly with accuracy of ±0.5% or better. At a lubricant bottling line in Thailand, a DN25 oval gear meter paired with a batch controller fills 1-liter bottles at 40 bottles per minute. The setup runs two-stage filling: a fast fill to 95 percent volume, then a slow dribble to final target, driven by the controller switching the valve relay.
For blended oils, custody transfer, or applications where mass measurement matters, a Coriolis mass flow meter becomes the preferred choice. It reports mass flow in kg/h and density in kg/m³, independent of viscosity. A biodiesel exporter in Malaysia uses a DN15 Coriolis meter from Silver Instruments to batch-load road tankers. The batch controller triggers a pneumatic ball valve at precisely 20,000 kg, and the system logs every transaction with a time and date stamp.
In practice, many installers skip the second stage and later complain about overfill. The bounce effect inside long hoses pushes extra oil after the valve closes. A two-stage valve logic with a dribble period set to 2-3 seconds solves this. The Silver BC-100 batch controller includes a configurable pre-stop and post-stop compensation that adjusts for valve latency and hose expansion. This is not theory. We debugged a filling skid in Kenya where a simple relay delay correction recovered 1.2 liters of diesel per 200-liter drum.
Valve Selection and Control Signal Details
The batch controller outputs a dry contact relay or a 24 V DC signal to drive the valve. For pipe sizes DN10 to DN25 and flow rates under 80 L/min, a direct-acting solenoid valve with PTFE seals works reliably for light oils. For DN40 and above, or for thicker oils like gear oil (ISO VG 220 at 40 °C), we recommend an air-actuated ball valve with a 4-20 mA positioner or a simple on/off sole
Power, Signal Interfaces, and Hazardous Area Considerations
Most batch controllers run on 24 V DC or 110/220 V AC. The flow meter sends a pulse signal (typically open collector NPN or reed switch) over a shielded cable. Silver Instruments oval gear meters supply a scalable pulse output, often 100 pulses per liter, enabling the batch controller to resolve volumes down to 10 millilitres. For installations in ATEX Zone 1 or Zone 2 areas, intrinsically safe barriers or explosion-proof enclosures are required. We supply complete systems certified for gas and dust environments, including EEx d batch controller housings with local display and pushbutton start/stop.
FAQ
Can I batch different oils with one meter and controller? Yes. Store up to 20 preset recipes in the batch controller. Each recipe holds target volume, pre-stop value, and two-stage timing. Operators select the recipe from the front panel keypad or via Modbus RTU from a PLC.
What is the minimum batch volume for an oval gear meter? With a small DN15 oval gear meter, you can batch as low as 0.1 liters accurately using a flow meter with a high-resolution pulse output and fast valve. For micro-dosing below 50 ml, consider a Coriolis meter with a sampling-type fill strategy.
Does the batch controller need a PLC or SCADA integration? The batch controller works standalone. It includes a start/stop button input, a reset input, and a pulse output totalizer. For automated plants, RS485 Modbus RTU links the controller to a PLC or on-site SCADA for remote start and data logging.
What common issues cause batch inaccuracy? Entrained air bubbles passing through the meter generate false pulses. Install an air eliminator upstream. Pulsation from a piston pump also fools a positive displacement meter. Use a pulsation dampener or switch to a gear pump. We often find that grounding the meter and using shielded pulse cables eliminates electrical noise false counts.
How do I choose between a local display batch controller and a wall-mount enclosure? For dusty or washdown areas, a wall-mount IP66 stainless steel enclosure protects the electronics. For clean plant floors, a panel-mount DIN 96x96 batch controller saves space and cost. Silver Instruments offers both form factors with the same batch engine.
Ordering Information and Next Steps
To specify an oil flow meter with batch controller for your fill station, send us the following: oil type and viscosity in cP at operating temperature, pipe size (DN), normal and maximum flow rate in L/min, target batch volume, valve type preference (solenoid or pneumatic), and supply voltage available. Our application engineers will propose a dimensional drawing and a quotation within one business day. Email [email protected] or see our oval gear flow meter and batch controller.
